Does a JSON schema stop format misses? Instructions vs schema mode in Claude Code and Codex CLI

Key numbers

The charts

Hover or focus a row for its exact value, interval and sample. Each chart has a Table view.

Tables

Method

1. The protocol states a pre-call declaration. Its current file birth time is 2026-10-07T01:47:06.955Z. The first counted call began at 2026-10-07T00:43:42.104Z. These files cannot verify a protocol declaration before the Codex calls. The extract keeps every counted call.
2. Three prompts each have one exact expected JSON answer and a sandboxed validator. The order task merges lines, drops a cancelled line and applies a discount. The invoice task applies a line discount and then tax, rounded half up. It also includes an untaxed fee and shipping. The meeting task extracts tickets, owners and due dates, resolves relative dates, and skips a decision and a note. We do not publish prompts or replies.
3. Two modes use the same task text. Instructions mode adds “Reply with the JSON object only, no code fence, no other text.” Schema mode removes that sentence and uses the CLI’s schema flag. Claude Code uses --json-schema; the harness reads its structured_output field. Codex exec uses --output-schema; the harness reads its final message.
4. Repetitions per prompt, in each mode: Haiku: 8; Sonnet: 4; GPT-6.1 Sol: 4. The order alternates by repetition, so time drift falls on both modes. Claude rows use the CLI’s default effort. GPT-6.1 Sol rows use low effort.

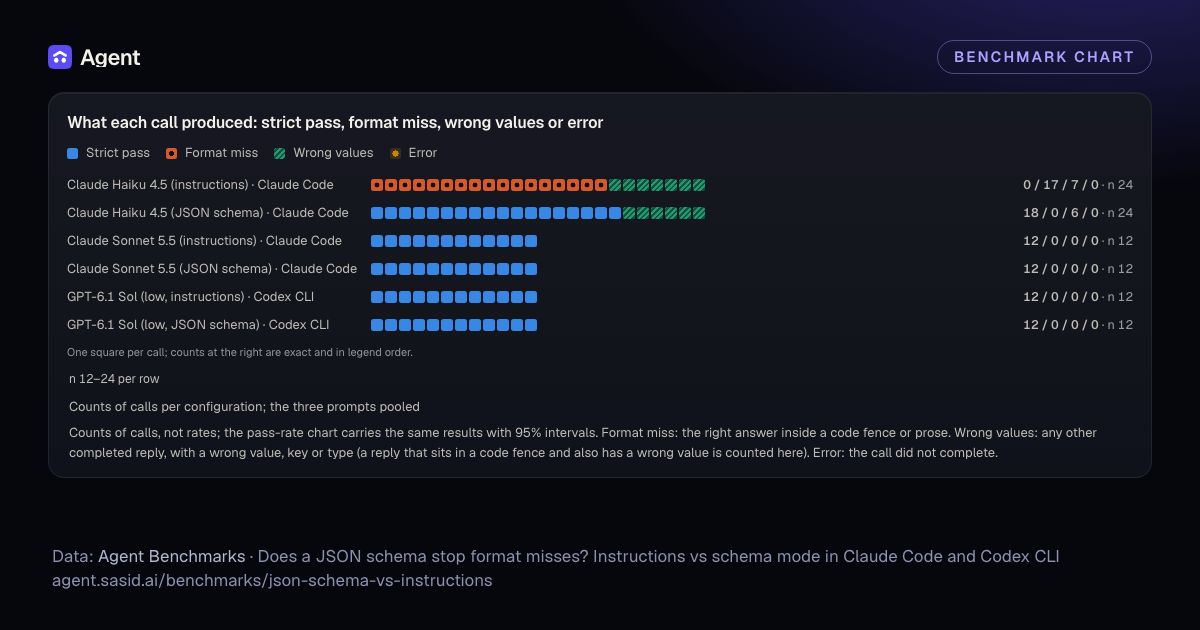

5. Scoring: a strict pass needs the whole reply to be the right JSON. A format miss is a right answer inside a code fence or prose. Wrong values means any other completed reply, including a fenced reply with a wrong value. An error means the call did not complete; it counts as a fail.

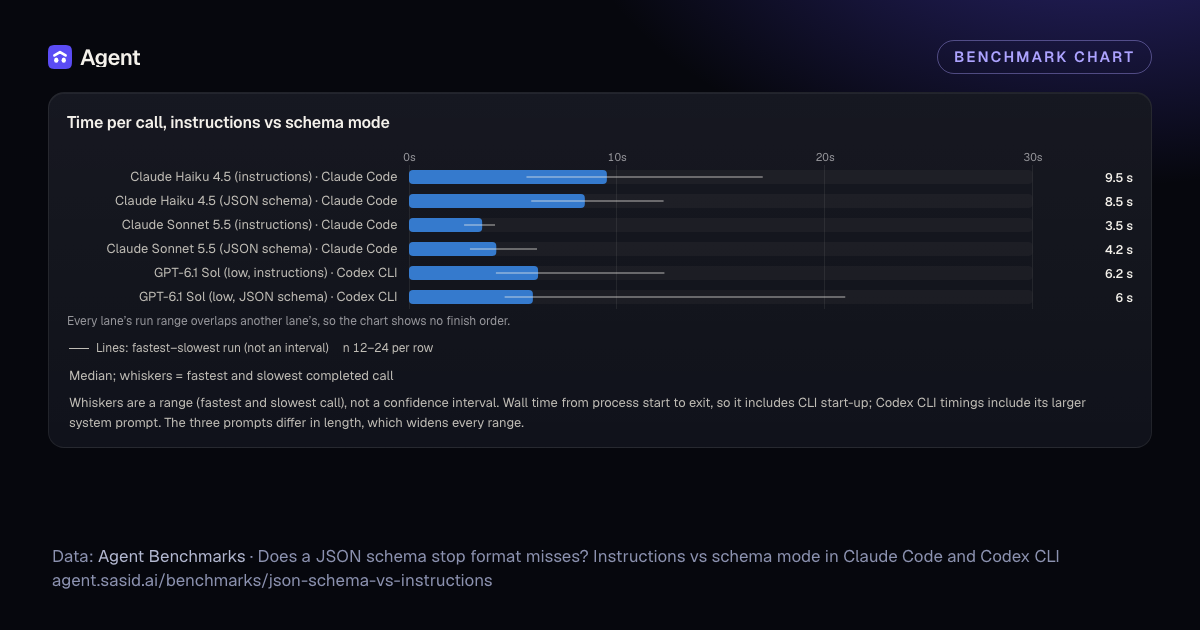

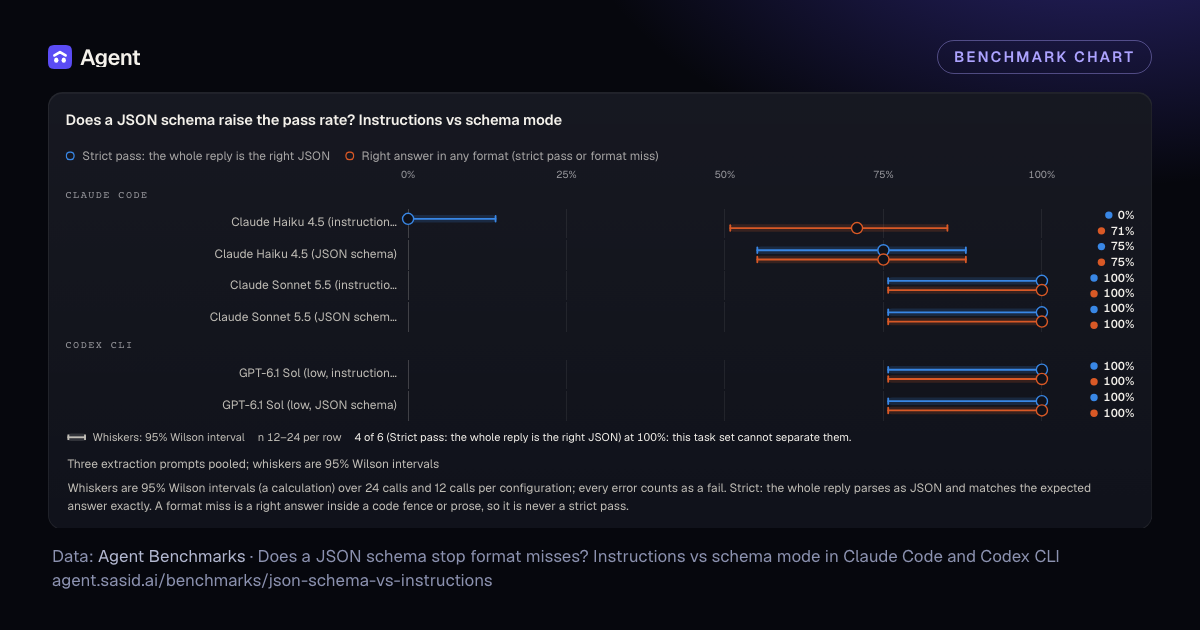

6. Rates carry Wilson 95% intervals (a calculation). A side is ahead only when the intervals do not overlap and the paired exact McNemar p is below 0.05. The paired table gives this p-value calculation. Time is a median with the fastest and slowest call: a range, not an interval.
7. Controls ran before inference. Each reference answer passes, including through the schema path. A reference inside a code fence counts as a format miss. Four planted wrong answers per prompt fail. One uncounted probe per route (2 here) checked how the harness reads the CLI output. Probes stay outside every cell.
8. Each call uses a fresh empty working folder, with tools off, no MCP servers and no session persistence. The harness reads the answer from the CLI output. Claude Code uses its JSON output format in both modes; earlier studies used its stream format. Schema mode adds the schema flag and removes the format sentence.
9. Every counted batch completed all planned cells.

Caveats

• Small samples: Haiku 24 calls per mode, Sonnet 12 calls per mode and GPT-6.1 Sol 12 calls per mode. A 12/12 result has a 95% interval of 76% to 100%. This is not a minimum detectable difference.
• The calls repeat only three fixed prompts. Wilson intervals describe call outcomes under a binomial assumption; they do not measure accuracy across unseen tasks. The paired p-values also assume independent pairs and do not remove this limit.
• The prompts are hand-made. The order prompt reuses a case with known Haiku format misses from an earlier study; this is not a blind holdout.
• Both routes used one shared Mac. The files do not establish host isolation from other work. Timings include CLI start-up and network time.
• The current protocol file was born after the Codex batch. An earlier version may have existed, but these files cannot verify pre-call registration. Amendment 1 says 00:44 UTC and before counted calls; the Codex batch started at 00:43 UTC. Amendment 4 says 06:10 UTC and before the Claude probe; the probe receipt was saved at 06:04 UTC and counted Claude calls began at 06:04 UTC. These timing conflicts limit the protocol claims. The calls remain descriptive evidence.
• The first Claude lane stopped after a 90-minute wait for another study to release the route. It made no inference call. The lane restarted later; no counted call was retried.
• The comparison changes both the schema flag and the format sentence. It cannot isolate the effect of the flag alone.
• These schemas constrain keys, types and currency labels. They do not verify totals or due dates. Both modes use the same task text. A change in wrong values is a measured result, not a design aim.
• Sonnet and GPT-6.1 Sol passed every call in both modes. These three tasks are within reach of those models, so they cannot show a schema effect for them; harder extraction may differ.
• The instruction wording is one sentence; another wording, or a schema with the format sentence kept, was not tested. The format-miss counts here are not comparable with the caching and consistency study, which used a different wording on one of these prompts.

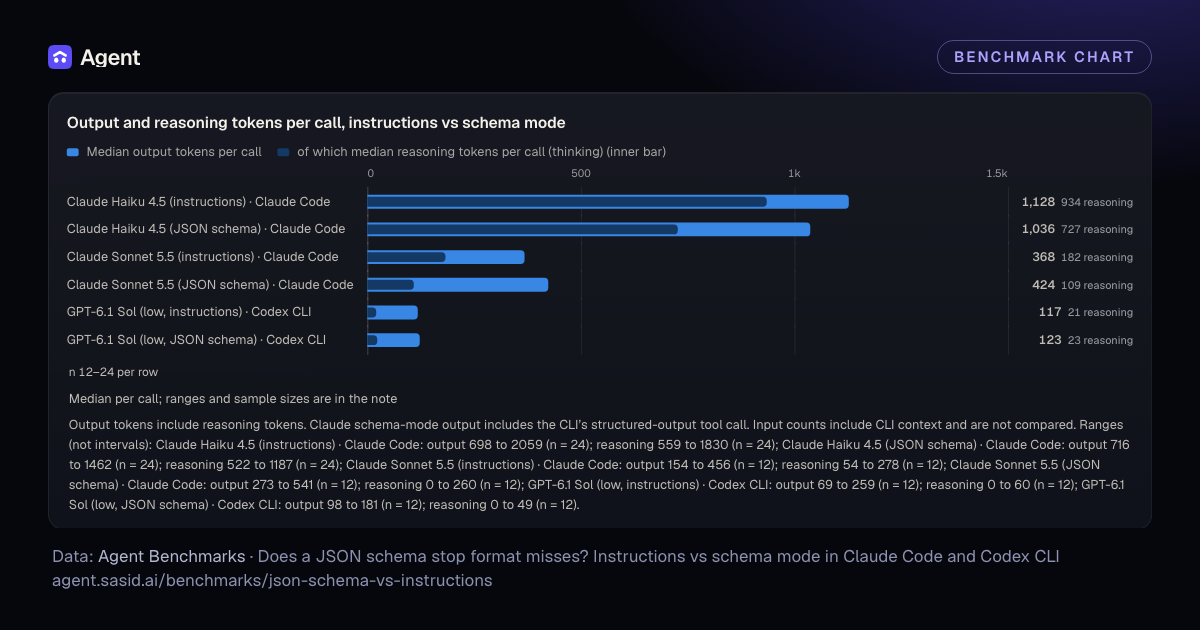

• In schema mode Claude Code returns the answer through a structured-output tool call. Its median was 2 model turns (range 2 to 2, n = 36). Instructions had a median of 1 (range 1 to 1, n = 36). Its time and token counts include that extra step.
• The Codex CLI’s exec mode does not echo the model or the reasoning effort. The request named GPT-6.1 Sol at low effort, and the CLI’s own catalog lists that model with that effort, but a reroute would not have been visible. Codex timings include its start-up and its larger system prompt, so Codex rows compare route and model pairs, not models alone.

Sources

• JSON schema vs instructions

  Our recorded runs · October 7, 2026

  Receipts copied from a run of the same three JSON extraction prompts, each asked with instructions only (mode I) and with the CLI’s JSON schema mode (mode S). Prompts, model output and failure reasons are not published; a failed check is named, never quoted. Every attempt is kept. Both routes ran one call at a time. The current protocol file does not verify pre-call registration; see protocolAudit. Calls repeat three fixed hand-made prompts, including a known format-miss case. Both routes used a shared Mac.

  Raw data: structured-output/receipts.json

Download the data

The study as JSON (with its sources), every chart point as CSV, or the whole public dataset. Free to reuse under CC BY 4.0: credit Agent and link the study.

Cite as: Agent public benchmarks, “Does a JSON schema stop format misses? Instructions vs schema mode in Claude Code and Codex CLI”, updated October 7, 2026, https://agent.sasid.ai/benchmarks/json-schema-vs-instructions.
