Voice agent latency budget: component calculations, not a measured turn

Key numbers

The charts

Hover or focus a row for its exact value, interval and sample. Each chart has a Table view.

Tables

Method

1. Thought experiment on recorded times. This study makes no new model calls. Every time comes from a run that another study published.
2. Budgets: 300 ms, 800 ms, 1,500 ms per decision step (assumption: a budget a voice team might set). Nothing in the data says what a product needs; change the budget and the table gives the share and the count for it.
3. Deterministic routing policy: the policy timing of the routing overhead run (latencyUs p50 and p95, converted to milliseconds). Rule-based System One decision: the recorded decision times of that run (millisecond resolution, record write excluded).
4. Jev 1.13: this study checks the per-call rows against the live-run summary. The rows record client wall time over HTTPS. They give n, median and p95 (latencyMs calls). The first call uses a fresh connection (coldFirstCall). This calculation subtracts the later-call median (callsWithoutColdFirst) from the first-call time. The run starts at run.startedAt and ends at run.endedAt. The client uses one Apple Silicon Mac on a home network.
5. Claude Sonnet 5.5 and Claude Haiku 4.5 as routers: median and interpolated p95 from the routing extract (latencyMs wallP50 and wallP95). The overhead extract supplies n and the observed limits, through the Claude Code CLI, one call at a time. CLI start-up: first model output on a one-word prompt, from the routing overhead run (firstModelEventMs; 5 runs per CLI).
6. Model first output: this study uses the matched provider explorer cohort for the fixed exact reply. Each configuration has 5 runs with firstUsefulMs timings. Routes are the OpenAI API and the Codex CLI. This study also selects the Claude Code configuration with the lowest observed first-output median in the 5-task head-to-head. Its timing sample includes completed validator failures. Failed or untimed calls have no successful first-output time.
7. Slow end: the 95th percentile where a step has 30 or more runs, and the slowest run where it has fewer. The slowest run is stricter than a 95th percentile.

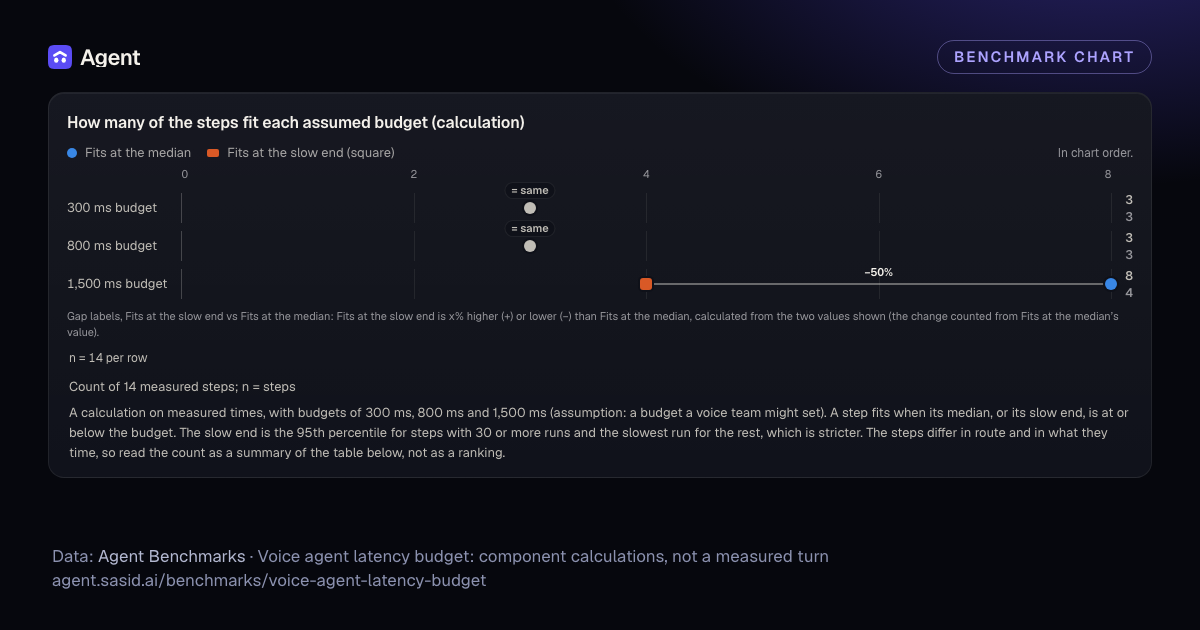

8. Calculations: share of a budget = time ÷ budget, at the median and at the slow end. A step fits when its time is at or below the budget. Runs that fit back to back = the budget ÷ the time, rounded down, counted up to 1,000. A router in front of a model adds the two medians and the two slow ends, as a scenario. Neither sum is a measured percentile or a guaranteed upper bound for the pair.

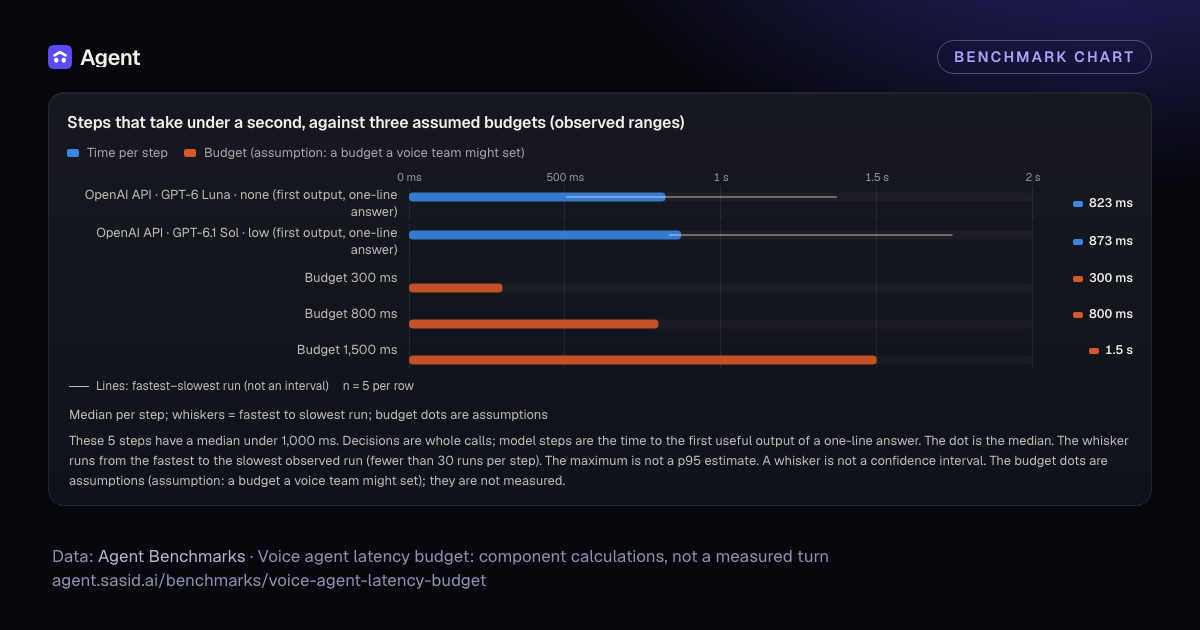

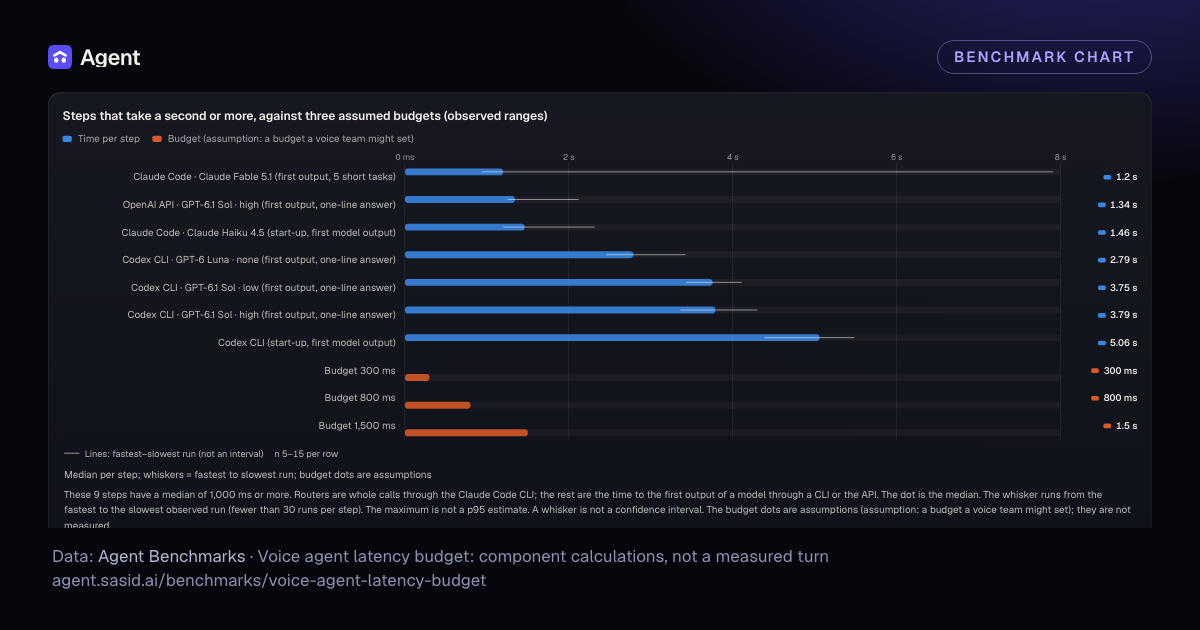

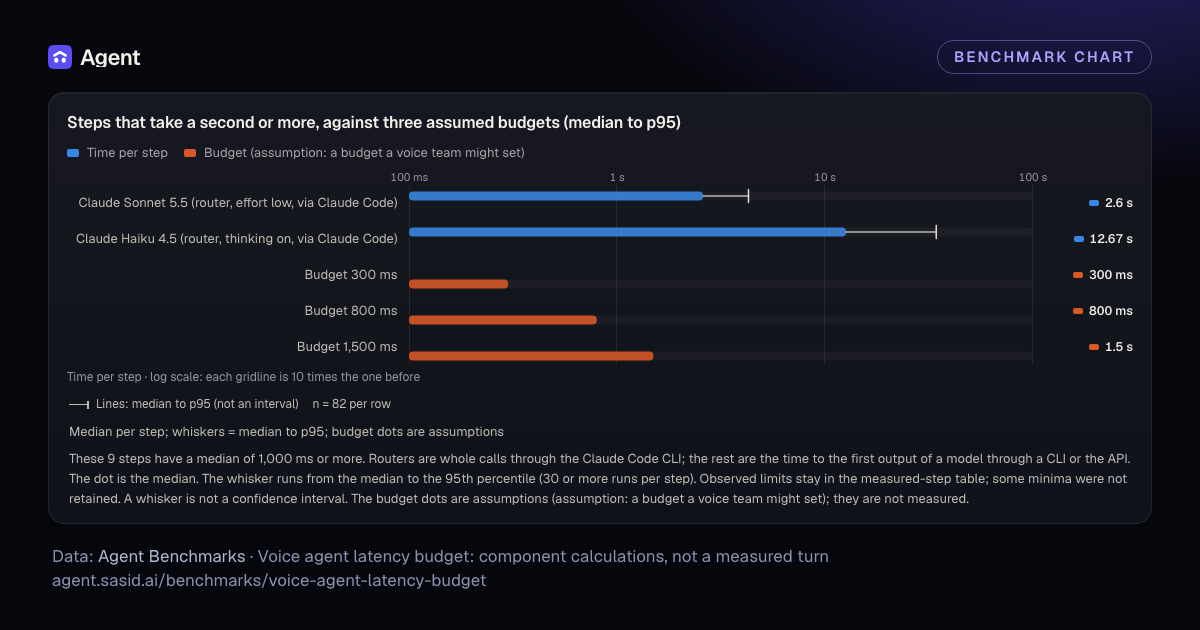

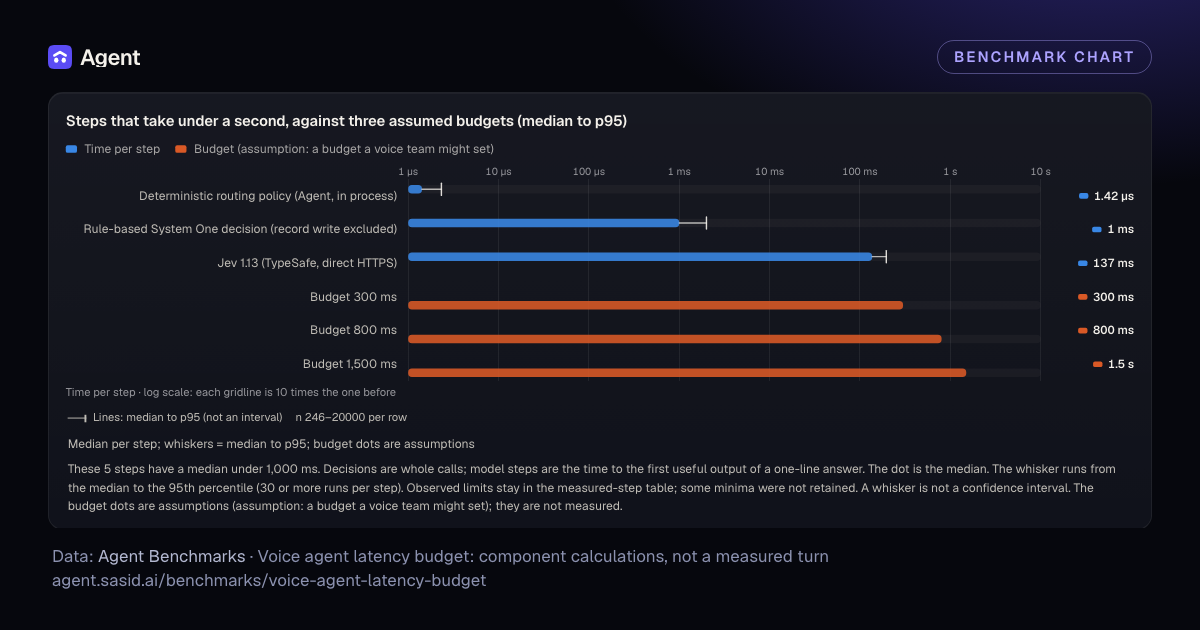

9. The charts separate steps with a median under 1,000 ms from the rest so each axis stays readable. Separate charts show median-to-p95 bands and observed min-to-max ranges. A range maximum is not a p95.

Caveats

• Timing samples omit 0 failed or untimed matched explorer calls and 0 failed or untimed Claude head-to-head calls. A failure is not a fast successful step. No pass rate is estimated here.
• The overhead extract uses nearest-rank quantiles. For LLM routers this study instead uses the conventional median and interpolated p95 from the routing extract. Per-iteration policy times and individual rule-record times are not retained, so those summaries cannot be independently rebuilt.
• The rule-arm latency is captured before the decision record is written. It excludes that write, despite the source summary label.
• The policy timing excludes database reads, policy merge and decision-record insertion. Its minimum was not retained. The rule-record timing also lacks a retained minimum.
• The Claude head-to-head tasks hit a pass-rate ceiling. This study selects the lowest observed Claude median after the run; ranges overlap and this selection is not a speed ranking. The accounts could run concurrently on the shared Mac.
• The 30-run cutoff is a display rule. It does not make a sample p95 a reliable production tail estimate. Some recorded calls exceed the p95; the table keeps their maxima visible.
• The budgets are assumptions. A voice product may need less or more; this study does not say what listeners accept.
• The steps differ in route and in what they time. Routers are whole decisions; models are the time to the first useful text, as the harness records it. First output is not necessarily enough text to start speech. A router through a CLI is a deployment choice, not a model limit.
• All times were recorded on one Mac, not on a server near the vendor, and on different days. Vendor latency changes over a day, and a server near the API would see different times.
• Small samples: 5 runs per model configuration, 5 per CLI start-up, 15 for the Claude Code configuration. Their slow end is the slowest run, a range and not a confidence interval.
• The imported explorer evidence has no frozen pre-run protocol. Those receipts do not establish that its controls and call caps were set before the run.
• The explorer uses a one-line answer; CLI start-up uses a one-word prompt. The selected Claude Code cell uses five short tasks, including code. Longer prompts and replies can change first-output time. No speech or audio was measured.
• No speech recognition, speech synthesis, turn detection or network round trip to a user is timed here. API wall times include the client-to-provider network. The steps are only the decision and the first model output.
• Calculations add medians and add slow ends across runs that were not made together. Medians do not add up exactly, and sums of p95 values do not guarantee a pair p95 or an upper bound. Repeated-step counts assume the same duration each time; they do not give a probability of fitting.
• Jev was timed in one run of 35 seconds, from one client machine on one network path, with calls one at a time. A hosted API can be faster or slower at another hour or from another region. The Jev decision cases were revised against Jev’s own answers, so its accuracy has a home advantage; this study uses only its time, not its accuracy.

Sources

• Voice-agent latency budget calculation

  Calculation · October 7, 2026

  Recorded decision and first-output times compared with assumed 300, 800 and 1,500 ms budgets. No complete voice turn ran.

• Routing overhead runs: policy microbenchmark and CLI start-up

  Our recorded runs · October 6, 2026

  In-process timing of the deterministic routing policy (20,000 timed decisions), CLI start-up with a one-word prompt (5 runs per CLI), and decision counts read from recorded bench runs. LLM router timings are reused from the routing runs.

  Raw data: routing-overhead/results.json

• Routing runs: Jev router vs LLM routing

  Our recorded runs · October 5, 2026

  Routing decisions recorded per case and arm.

  Raw data: routing/receipts.json

• Provider explorer receipts: CLI vs API

  Our recorded runs · October 3, 2026

  230 imported receipts for short fixed tasks over Claude Code CLI, Codex CLI and the OpenAI API, with time to first useful output, total time, tokens and validation.

  Raw data: provider-explorer/runs.json

• Provider head-to-head: Claude Code models vs Codex efforts

  Our recorded runs · October 5, 2026

  Five short tasks with deterministic validators, declared protocol, every attempt kept.

  Raw data: provider-h2h/receipts.json

• Jev live run: 246 timed calls on the 82 routing decisions

  Our recorded runs · October 6, 2026

  Jev 1.13 called over HTTPS, 3 repeats of the same 82 typed decisions, one call at a time, from one Mac over a home network: client wall time, with the network inside it. The API reports no server time. Cost per 1,000 decisions is a calculation from the reported input tokens and the published price. The case sets were revised against Jev answers, so Jev has a home advantage.

  Raw data: jev-live/summary.json, jev-live/calls.json

Download the data

The study as JSON (with its sources), every chart point as CSV, or the whole public dataset. Free to reuse under CC BY 4.0: credit Agent and link the study.

Cite as: Agent public benchmarks, “Voice agent latency budget: component calculations, not a measured turn”, updated October 6, 2026, https://agent.sasid.ai/benchmarks/voice-agent-latency-budget.
